Home > products > Laser Rust Removal > Hanheld Fiber Laser Rust Removal Machine 100W Scanner Laser Cleaner

Hanheld Fiber Laser Rust Removal Machine 100W Scanner Laser Cleaner

Product Details

Place of Origin: Wuhan, China

Brand Name: QUESTT

Certification: ISO CE

Model Number: QA-LC100

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Exporting Wooden Cases

Delivery Time: 20 days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 3800 sets per year

Get Best Price
Highlight:

laser rust and paint remover

,

laser cleaning machine

Laser Power:
100 Watts
Laser Beam Width:
10-110 Mm
Laser Source:
Fiber Laser Device
Service:
Online, Overseas Services
Scanner Speed:
0-7000mm/min
Weight:
42 Kgs
Laser Power:
100 Watts
Laser Beam Width:
10-110 Mm
Laser Source:
Fiber Laser Device
Service:
Online, Overseas Services
Scanner Speed:
0-7000mm/min
Weight:
42 Kgs
Hanheld Fiber Laser Rust Removal Machine 100W Scanner Laser Cleaner

Hanheld Fiber Laser Rust Removal Machine 100W Scanner Laser Cleaner



Hanheld Fiber Laser Rust Removal Machine 100W Scanner Laser Cleaner 0

Description:

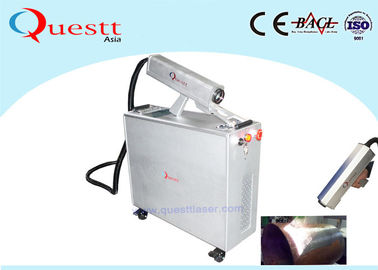

QA-LC100 Handheld Laser rust removal machine is a portable type, which is only 29kgs, easy to take by hand and operate outdoors.

The laser cleaning machine is a new generation of industrial  metal surface cleaning laser system. It adopts the advanced fiber laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.

It can be designed according to customer requirements to develop a unique system. Widely used for the surface laser degreasing, laser paint removal, laser removal of zinc, laser film removal, laser cleaning, such as coating, etc

The machine can move freely on floor, as it has 4 wheels on the bottom, you can also take up by hand easily. Very convenient for transport.





Product features:



(1) it is a "dry" cleaning, do not need cleaning solution or other chemical solution, will not lead to the two pollution, and cleanliness is much higher than chemical cleaning process;

(2) the laser cleaning technology is very extensive, such as various oxide particles, rust, coating and organic matter on the surface;

(3) the traditional cleaning method is often close to the operation, the substrate surface mechanical force, easy to damage the substrate; and laser cleaning is non-contact processing, remote operation can be carried out, by adjusting the laser parameters, on the basis of no damage on the surface of the substrate, the effective removal of pollutants, such as involution of the surface;

(4) with the aid of modern means, laser cleaning can easily realize automatic operation;

(5) laser decontamination equipment can be used for a long time;

(6) laser cleaning technology is a kind of "green" cleaning process, the elimination of waste is solid powder, small size, easy to store, basically no pollution to the environment.

Hanheld Fiber Laser Rust Removal Machine 100W Scanner Laser Cleaner 1



Specifications:

QA-LC60 Laser Cleaning Machine for rust removal.pd...

Introduction Laser Cleaning Machine Detailed.pdf



Model QA-LC50 QA-LC60 QA-LC100 QA-LC200 QA-LC1000
Laser source Fiber Fiber Fiber Fiber Fiber
Laser Power 50W 60W 100W 200W 1000W
Laser Wavelength 1060nm 1060nm 1060nm 1060nm 1064nm
Pulse frequency 20-100KHz 20-100KHz 20-100KHz 20-100KHz 20-500kHZ
Cooling Air Air Air  air  Water chiller
Dimension 760*780*790mm 800*450*1000mm 900x800x1300mm
Weight30 Kg 40Kg 40Kg 90Kg 300kgs
Scanner width 10-110mm 10-110mm 10-110mm 10-170mm 10-170mm
Optional Manual/Automation/Customers
Temperature 5-40 ℃ 5-40 ℃ 5-40 ℃ 5-40 ℃ 5-40℃





Application scope:

Metal workpiece laser derusting, paint removal, zinc and film remover, laser coating removal,

Industry: aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc

Hanheld Fiber Laser Rust Removal Machine 100W Scanner Laser Cleaner 2



Machine outlook with sample:

Hanheld Fiber Laser Rust Removal Machine 100W Scanner Laser Cleaner 3



FAQ:



1 Q: What is the warranty ?

A: 1 year warranty and offer whole life after-sale service.

2 Q: What is your payment term?

A: T/T, L/C, Westen Union and paypal etc.

3 Q: What is your after-sale service?

A: Engineers can offer oversea services.

4 Q: How is the quality of the machine?

A: Good quality with German technology.

5 Q: How is the operation of the machine?

A: We offer operation manual and videos, showing you how to operate the machine. The operation is very easy.
