Product Details
Place of Origin: China
Brand Name: Questt
Certification: ISO , CE
Model Number: QA-YAG500B
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Exporting Wooden Cases
Delivery Time: 5 - 23 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 4300 sets / year
Power: |
500W |
Work Size: |
1200 X 1200 Mm |
Laser: |
YAG Laser |
Cutting Thickness: |
0-6mm |
Material: |
Metal |
Service: |
Overseas Service |
Power: |
500W |
Work Size: |
1200 X 1200 Mm |
Laser: |
YAG Laser |
Cutting Thickness: |
0-6mm |
Material: |
Metal |
Service: |
Overseas Service |
YAG small laser cutting machine 1200x1200mm table laser cutter for stainless steel
Overview
QA-YAG500B YAG small laser cutting machine is a small type laser cutter machine, which equip with a X Y axis working table 1200x1200mm. The laser source is YAG, much cheaper than Fiber laser, but also can cut thick metal sheets.
The machine is including laser generator, (external) laser beam transmission part, worktable (machine tool), main controlling cabinet, cooling system and computer digital controlling system (hardware and software) etc..
The laser cutter using 1064nm wavelength pulse laser focus and eradiate on the surface of work piece. The surface heat diffuses inside of material through heat-conduction.
Its numerical controlling system controls the pulse width, laser energy, peak value and repeatability accuracy of the machine and make material fusing, gasifying instantly for realizing cutting, welding, drilling by numerical controlling according to scheduled track.
Configuration
1. Nd:YAG 500W laser source
2. Laser power supply
3. High quality water cooling system,
4. Imported high quality laser cutting head
5. X Y axis worktable 1200x1200mm
Advantages
1. Processing speed is faster, higher efficiency.
2. Smaller cutting slit, smoother cutting edge, bigger depth/diameter rate and depth/width
3. Small distortion, suitable for hard, fragility, soft materials
4. No wear, no exchange problems,
5. Suitable for the special environment.
6. Low running cost: The cutting cost by air is only 1.95usd/hour
7. Optimized imported optical lens, high quality
8. Dual drive, aging treatment, stress relief test to ensure long time fast running without changing shape
9. No mechanical distortion
10. Reasonable price with good ability.
Parameter datas
Laser medium | Nd3+:YAG |
Light wavelength | 10640nm |
MAX output power | 500W |
the max. divergence | 25mrad |
Single pulse energy | 10J |
Pulse width | 0-20ms adjustable |
Pulse repeated frequency | 0-300Hz adjustable |
Cooling system | Double circle water cooling |
Diameter of the smallest beam spot | 0.01mm |
Cutting area | 1200x1200mm |
Max Cutting Speed | 0-3M/min |
Cutting Position accuracy | 0.02mm/1000mm |
Max thickness for SS | 0-6mm |
Power supply and cooling system | Three-phase,AC,380V10% 18KW deionized water cooling |
Components | Main cabinet, power cabinet, X-Y worktable, heat exchanger, cooling system |
Service | Engineer offer oversea service |
Cutting parameter
300W | 500W | 650W | |
Carbon steel | 0-3mm | 0-6mm | 0-8mm |
Stainless steel | 0-2mm | 0-3mm | 0-4mm |
Aluminum alloy | 0-1mm | 0-2mm | 0-3mm |
Application
Aviation and space, weapon, warship, petrifaction, medical, instrument, micro-electron, auto mobile car industries.
Material: Steel, Iron, Aluminum, Copper etc.
Samples

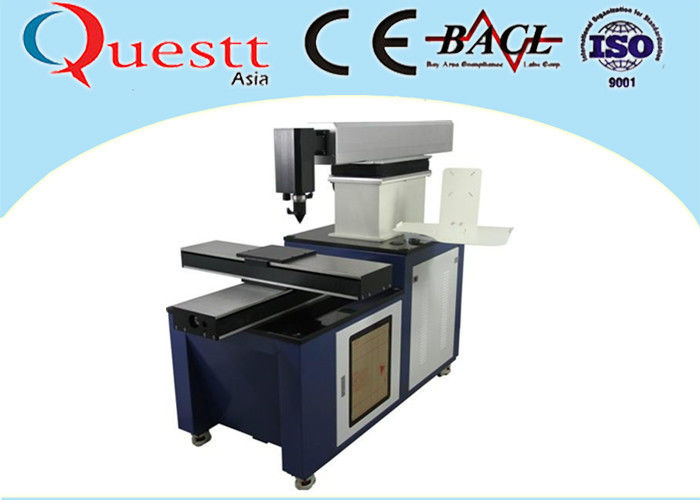

Machine outlook
